Description

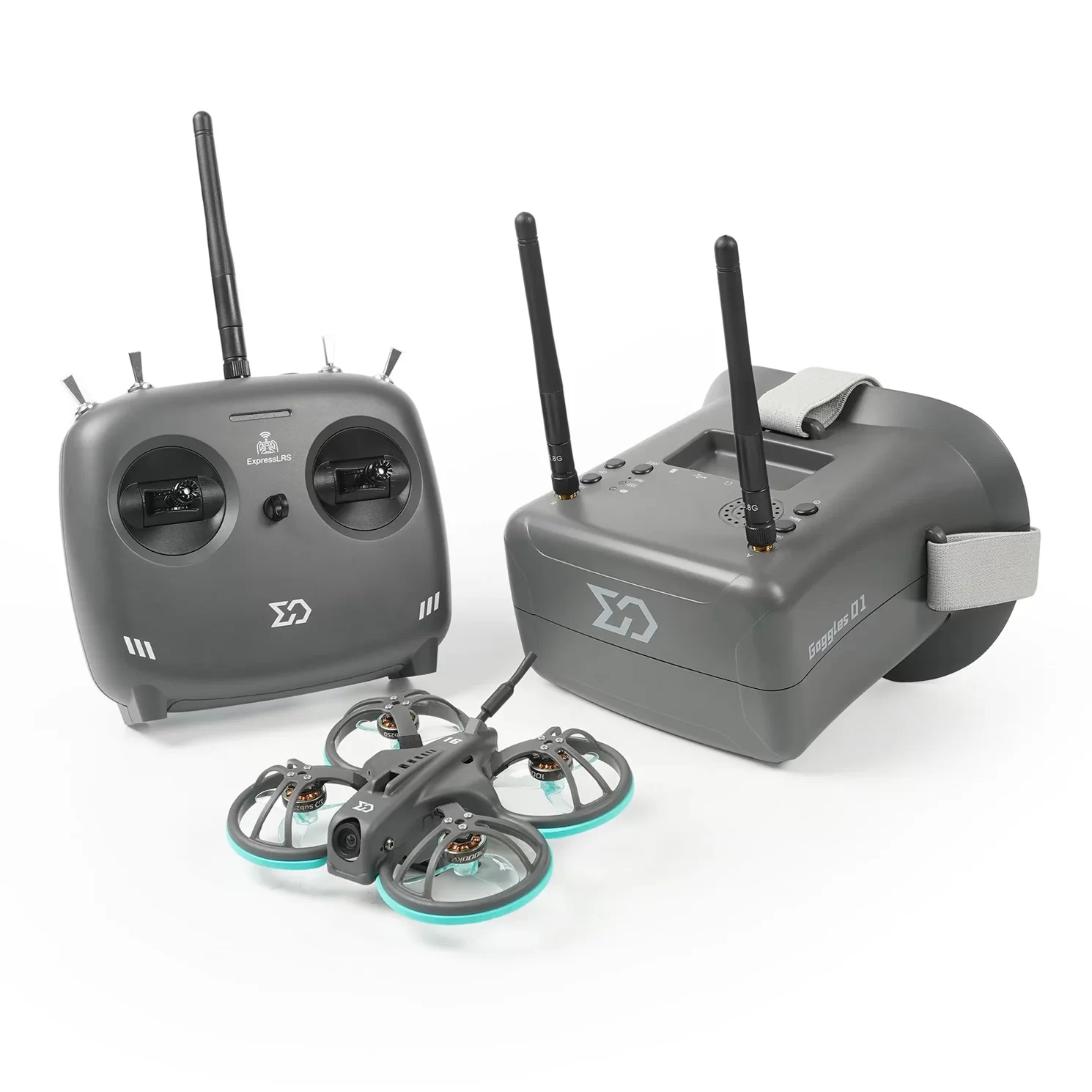

Sub250 highly recommends the new Whoopfly16 RTF Kit in 2023! It will be a brilliant choice for new FPV beginners to start flying. Comes with a Whoopfly16 Analog Elrs 2.4gHz FPV drone, MicroRadio Elrs 2.4gHz transmitter, and Goggles 01.



Whoopfly16 is an inverted pusher with a protective frame FPV drone. It combines the characteristics of a short wheelbase for smooth indoor flight and the protection ring has strong protection characteristics.



Sub250 MicroRadio Elrs 2.4gHz remote control with a maximum transmission power of 500mW, 8 channels of ultra-low latency, replaceable 18650 batteries, and support type-c charging.



The FPV Goggles 01 use dual antennas to receive picture signals at the same time, support card recording DVR, built-in 3.7V 2000mAh battery that can be used for up to 2.5 hours, support USB fast charging, and one-key search frequency point. The multi-function menu design makes the operation more convenient.



Sub250 Whoopfly16 Analog Elrs 2.4G Whoop 75mm



Specifications:

• Product name: Whoopfly16 Analog Elrs 2.4
• Frame: WF16
• Wheelbase size: 75mm
• Flight control system: Redfox A1 F4 5A 4in1 1S AIO FC
• MCU: STMF411
• IMU: ICM42688-P
• OSD: BetaFlight OSD w/AT7456E chip
• ESC: Redfox A1 4IN1 5A ESC
• VTX: VTX 5.8G 200mW
• Lens: Caddx Ant eco
• Propeller: Gemfan 1608-3
• Antenna: 5.8g copper tube antenna 70mm
• ELRS Version weight: 35.2g
• Receiver: ELRS 2.4G (SPI)



Sub250 MicroRadio Elrs 2.4g Transmitter



Specifications:

• Product name: MicroRadio
• Size：147*135*71mm (Not including antenna)
• Weight：223g
• Adapted Drone Type: Multirotor, Airplane
• Frequency band：4GHz ISM
• Input voltage：6-8.4V
• Antenna interface： SMA
• Power：100/250/500mW
• Channel：8 channel
• Charging interface： USB-C
• Firmware upgrade： Support
• Bluetooth joystick： Support
• Note: Not including Remote Control’s Batteries (2X 18650 Batteries)



Sub250 Goggles 01



Specifications:

• Product name: Goggles 01
• Resolution：800*480px
• Size of screen: 4.3 inch
• Size: 155mm*144mm*113mm
• Built-in Batteries: 3.7v / 2000 mAh
• Working Time: 2.5 hours
• Weight: 314.6g



Whoopfly16 RTF Kit’s Package Includes:



• 1 x Whoopfly16 Analog Elrs 2.4g FPV Drone
• 1 x MicroRadio
• 1 x Sub250 Goggles 01
• 1 x Sub-CW1 charger （Note 1: We already upgraded the Charge Connector from GNB27 to A30 !）
• 2 x Sub250 530mAh 90C 1S batteries
• 4 x 1608-3 Propellers
• 1 x Phillips screwdriver
• 1 x L-type Allen screwdriver (1.5mm)
• 1 x Portable Storage Bag



 Whoopfly16 RTF Basic Teaching



• Whoopfly16 RTF Basic Teaching
• Open the bag
• Take out the radio/ goggles /drone/ and batteries
• Take out two 5.8g antennas and install them on the goggles
• Mounting the single antenna on the radio
• Long press the radio power button to power the radio first
• Long press the goggles power button to power
• Plug in the battery to power the drone
• The batteries can be recharged via Sub250-CW1 charger
• The drone has been bound to the radio’s default factory settings
• Just place all the levers at the top and the throttle at the bottom
• Pull the leftmost lever down, and the drone is unlocked
• The drone default to the angle mode. You can connect betaflight configurator install more mode
• Short press the menu button of goggles to enter the one-click search mode
• The goggles will automatically select best signal channel according to the signal strength
• Wearing your goggles to start flying now!
